Specification

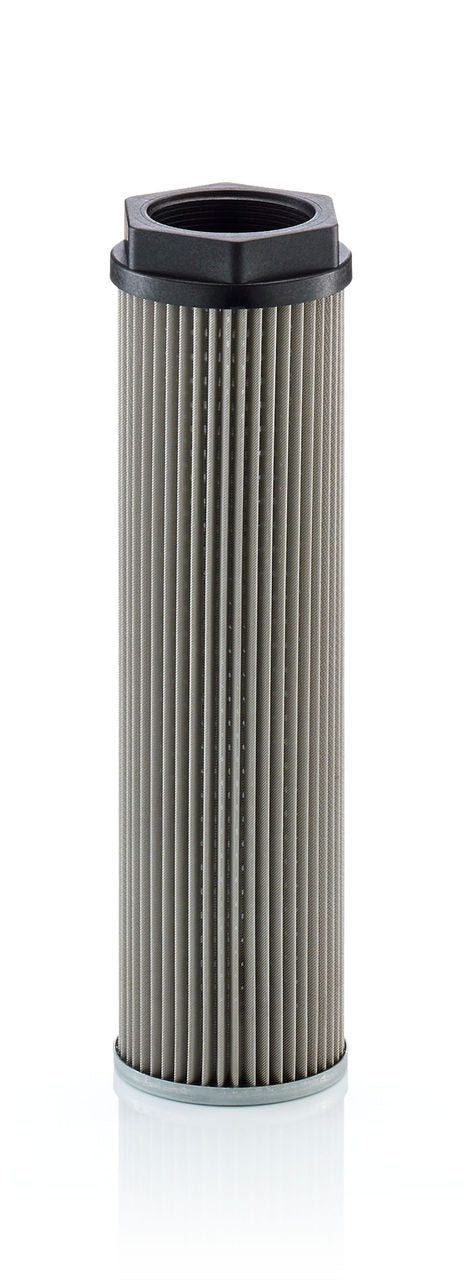

StyleSpecial Filter
Efficiency 1125µ
Outer Diameter 86.0 mm
Length 310.0 mm
Thread2" BSP
MediaWire Mesh
Flow DirectionOUT-IN
Δ Collapse Pressure 1 BAR
Seal MaterialViton
Temperature Range -25 - +120°C

Approved Product

Find out more
Default Brand Logo

Same Fit-Form & Function

As the Genuine CLAAS 0005969050

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
125µ
Efficiency 2

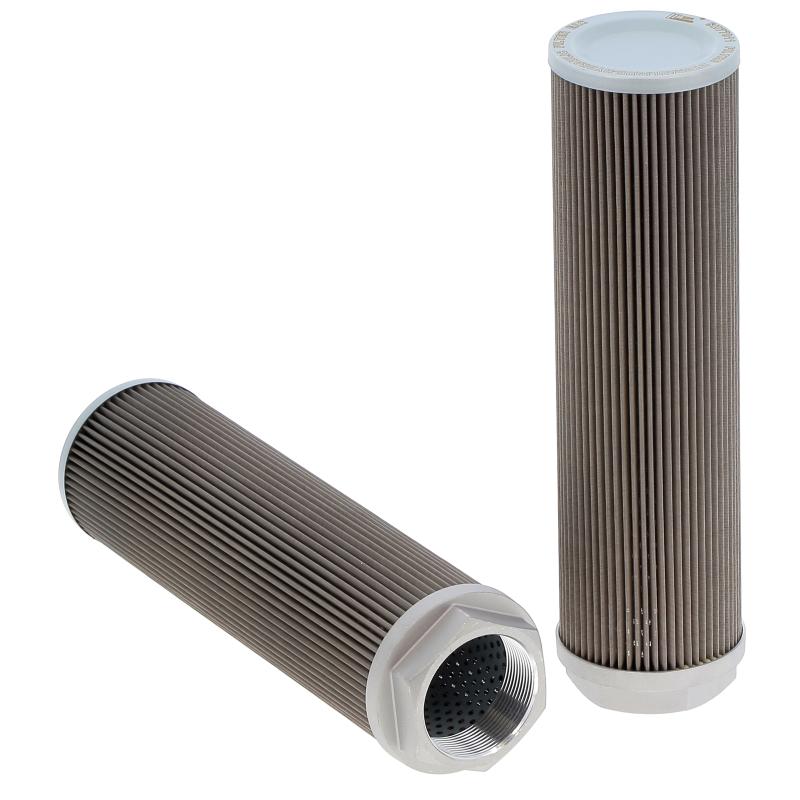

Style Special Filter
Outer Diameter 86.0 mm
Inner Diameter
Length 310.0 mm
Media Type Wire Mesh
Flow Direction OUT-IN
Thread 2" BSP
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 1 BAR
Seal Viton
Temperature Range -25 - +120°C
