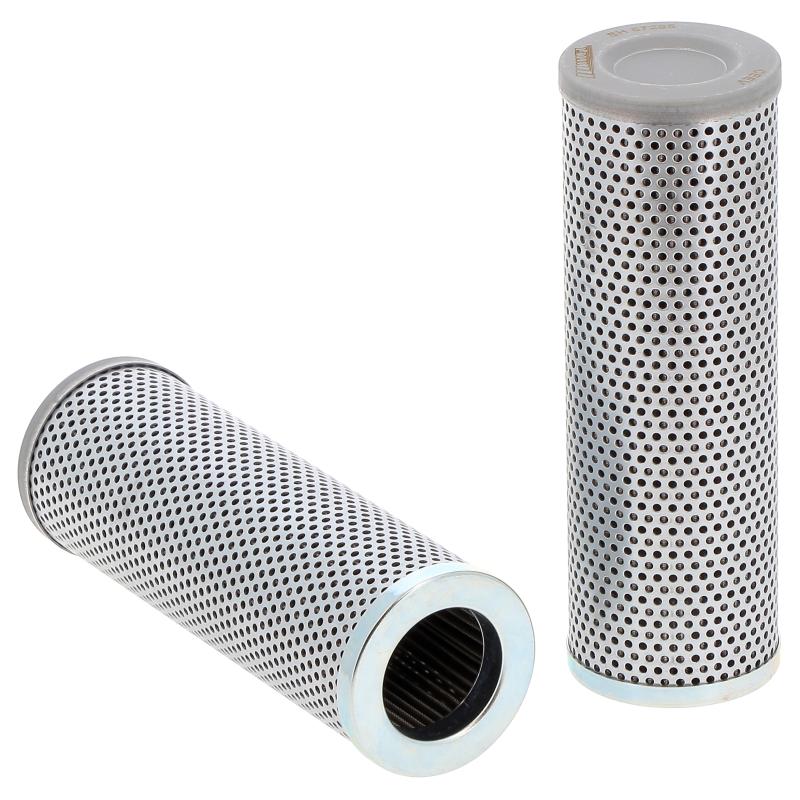

Specification

StyleSpecial Filter
Efficiency 125µ
Outer Diameter 74.0 mm
Inner Diameter 46.0 mm
Length 222.0 mm
MediaWire Mesh
Flow DirectionIN-OUT
Temperature Range -25 - +100°C

Approved Product

Find out more
Eppensteiner Brand Logo

Same Fit-Form & Function

As the Genuine Eppensteiner 6140G25S000P

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
25µ
Efficiency 2
Style Special Filter
Outer Diameter 74.0 mm
Inner Diameter 46.0 mm
Length 222.0 mm
Media Type Wire Mesh
Flow Direction IN-OUT
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure
Seal
Temperature Range -25 - +100°C
