Summary

Donaldson P171736 Alternative to the MP Filtri 8HP1351P25NA

Donaldson P171736
Donaldson P171736
Datasheet preview
Watch video
▶

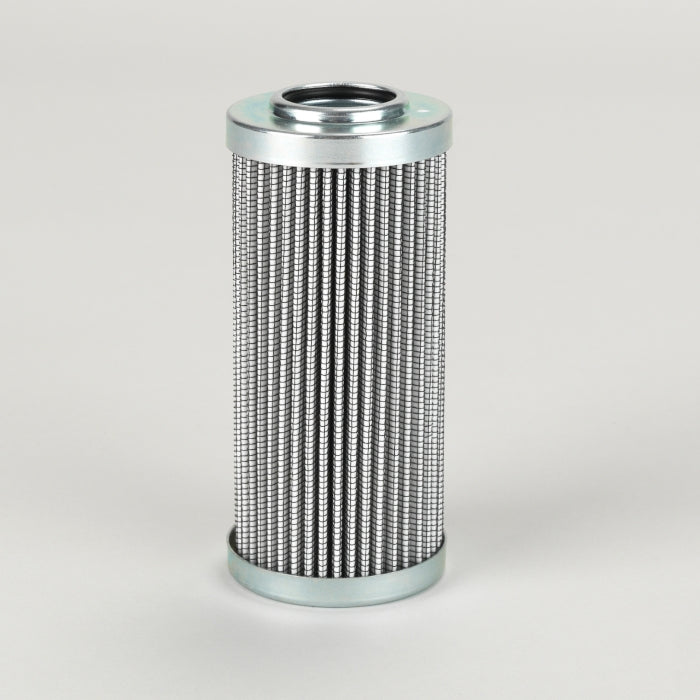

Representative product image Product image feedback

Donaldson P171736 Hydraulic Filter, Cartridge | Alternative to the MP Filtri 8HP1351P25NA

Brand: Donaldson
Price Match
$36.00
0.23 kg
0.0006 m³
1040 pcs
Italy
8421.29.80.90
0.24 kg
0.0004 m³
1040 pcs
Italy
8421.99.90
0.16 kg
0.0004 m³
1040 pcs
France
8421.99.90
0.44 kg
0.0004 m³
1040 pcs
United Kingdom
8421.99.90
Shipping Terms

Description

Genuine Donaldson P171736 Hydraulic Filter, Cartridge is designed to provide superior protection for your hydraulic system, effectively capturing contaminants to ensure clean fluid circulation. With high-quality filtration media, it extends equipment life, improves operational efficiency, and maintains fluid cleanliness even in the most demanding environments.

Built for industrial, agricultural, and heavy-duty applications, this filter offers excellent dirt-holding capacity and flow efficiency. Its easy installation and maintenance help reduce downtime, making it a reliable choice for keeping hydraulic systems running smoothly.

Specification

StyleHydraulic Filter, Cartridge
MediaSynthetic
Inner Diameter 27.4 mm
Length 122 mm
Δ Collapse Burst 20 bar

Description

Genuine Donaldson P171736 Hydraulic Filter, Cartridge is designed to provide superior protection for your hydraulic system, effectively capturing contaminants to ensure clean fluid circulation. With high-quality filtration media, it extends equipment life, improves operational efficiency, and maintains fluid cleanliness even in the most demanding environments.

Built for industrial, agricultural, and heavy-duty applications, this filter offers excellent dirt-holding capacity and flow efficiency. Its easy installation and maintenance help reduce downtime, making it a reliable choice for keeping hydraulic systems running smoothly.

Cross References

To the genuine MP Filtri 8HP1351P25NA

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Donaldson Warranty

Donaldson Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
25µ @ β2
Efficiency 2
Style Pressure Filter
Outer Diameter 53.0 mm
Inner Diameter 27.5 mm
Length 120.0 mm
Media Type Cellulose
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 21 BAR
Seal Nitrile
Temperature Range -30 - +100°C
