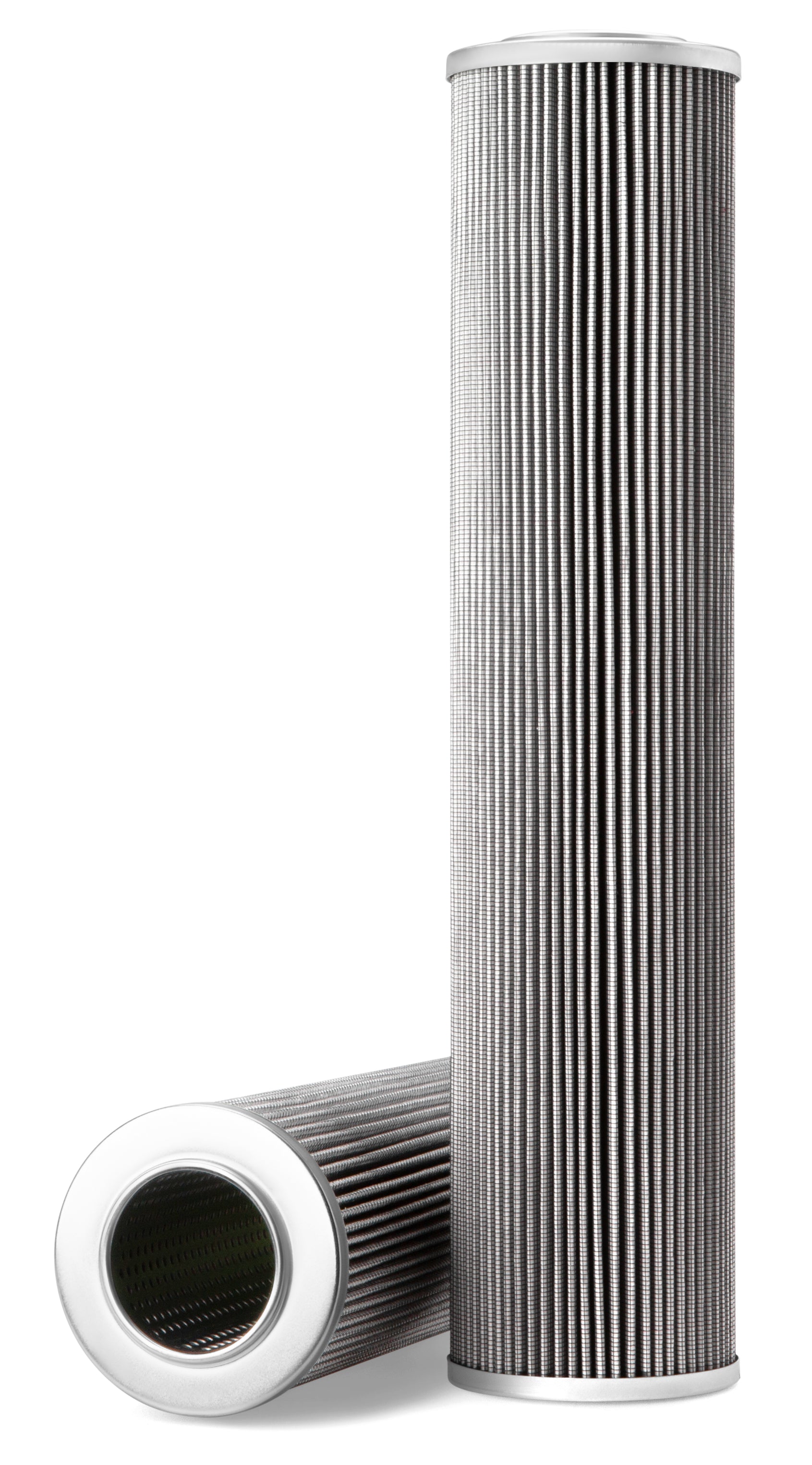

Fleetguard HF30316 Replacement Pressure Filter

Fleetguard HF30316
Fleetguard HF30316
Representative product image Product image feedback

Fleetguard HF30316 Pressure Filter

Brand: Fleetguard
Description

Fleetguard® HF30316 premium hydraulic cartridge filter with synthetic media is designed to help keep your precision hydraulic systems running as intended, providing a solution for various applications. This filter meets or exceeds the equipment OEM quality and performance and is the first aftermarket replacement available on the market today, bringing your operation top-quality performance and an overall unbeatable total cost of ownership.

Price Match
$266.00
1.77 kg
0.0082 m³
200 pcs
United States
8421.99.90
3.53 kg
0.004 m³
200 pcs
United Kingdom
8421.99.90
1.02 kg
0.0054 m³
200 pcs
United States
8421.29.80.90
1.61 kg
0.004 m³
200 pcs
Italy
8421.99.90
1.34 kg
0.0055 m³
200 pcs
France
8421.99.90
Shipping Terms

Description

Fleetguard® HF30316 premium hydraulic cartridge filter with synthetic media is designed to help keep your precision hydraulic systems running as intended, providing a solution for various applications. This filter meets or exceeds the equipment OEM quality and performance and is the first aftermarket replacement available on the market today, bringing your operation top-quality performance and an overall unbeatable total cost of ownership.

Specification

StylePressure Filter
MediaGlass Fiber
Efficiency 110µ @ β200
Efficiency 212µ @ β1000
Outer Diameter 96.0 mm
Inner Diameter 56.5 mm
Length 429.0 mm
Δ Collapse Pressure 25 bar
Seal MaterialNitrile
Temperature Range -30 - +100°C
Fleetguard Brand Logo

Fleetguard Product

Genuine Fleetguard HF30316

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Fleetguard Warranty

Fleetguard Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
10µ @ β200
Efficiency 2 12µ @ β1000
Style Pressure Filter
Outer Diameter 96.0 mm
Inner Diameter 56.5 mm
Length 429.0 mm
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 25 BAR
Seal Nitrile
Temperature Range -30 - +100°C
