Specification

StylePressure Filter
Efficiency 125µ
Outer Diameter 80 mm
Inner Diameter 42.2 mm
Length 157 mm
MediaWire Mesh
Flow DirectionOUT-IN
Δ Collapse Pressure 30 BAR
Seal MaterialViton
Temperature Range -25 - +120°C

Approved Product

Find out more
Default Brand Logo

Same Fit-Form & Function

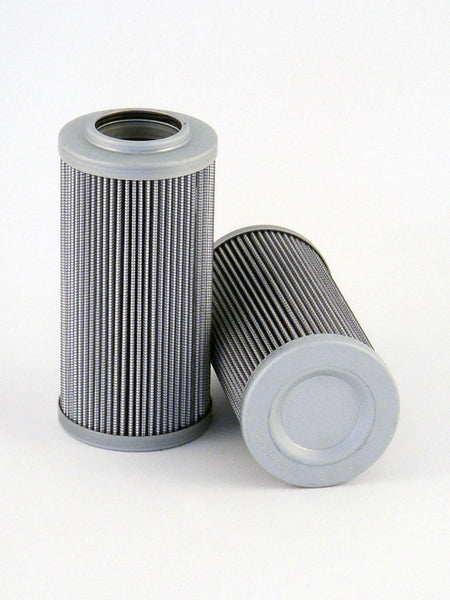

As the Genuine Hy-Pro HP67NL625WV

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
25µ
Efficiency 2
Style Pressure Filter
Outer Diameter 80 mm
Inner Diameter 42.2 mm
Length 157 mm
Media Type Wire Mesh
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 30 BAR
Seal Viton
Temperature Range -25 - +120°C
