Summary

Argo-Hytos V3.2144-06 Alternative to the Argo-Hytos V3214406

V3214406
V3214406
Representative product image Product image feedback

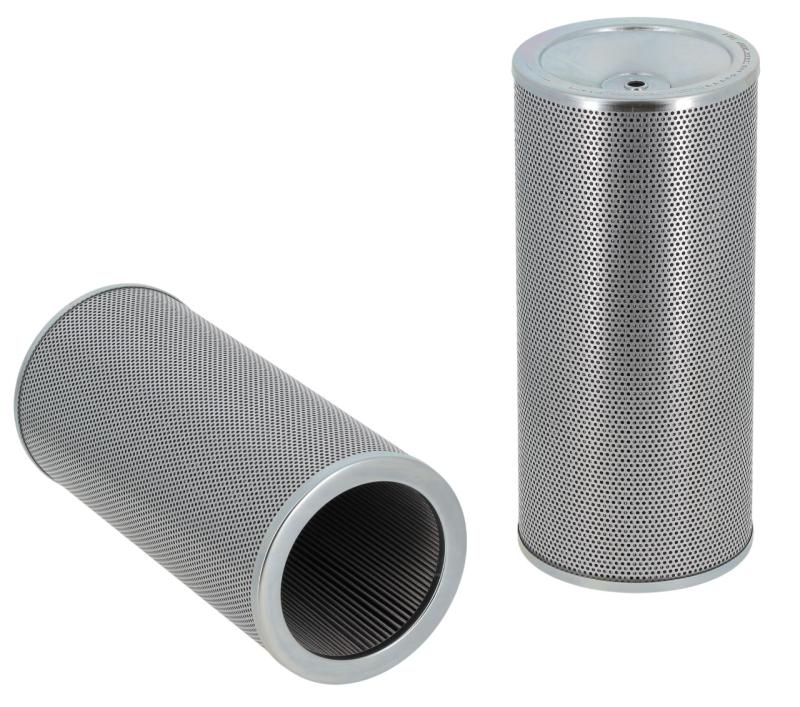

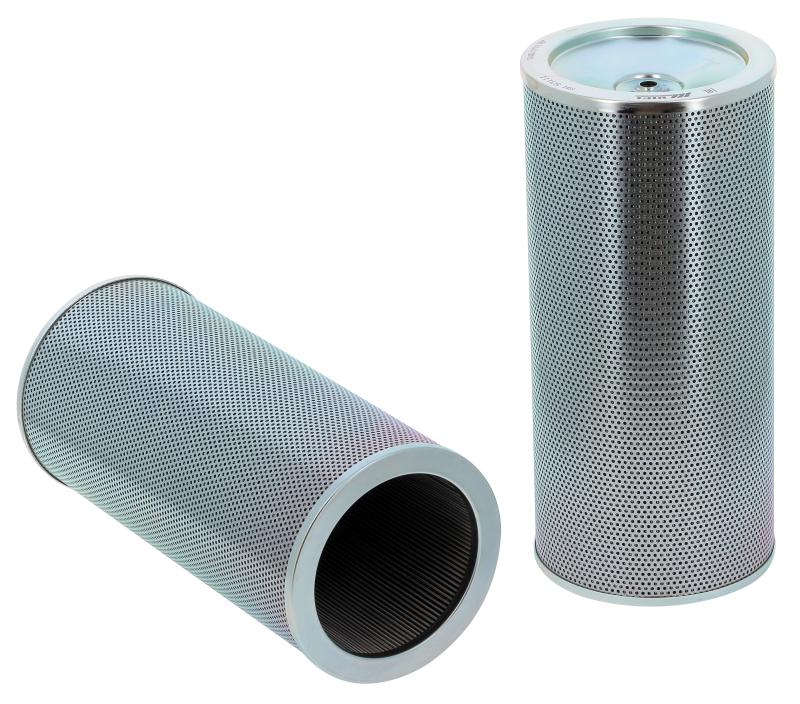

Argo-Hytos V3.2144-06 EXAPOR MAX 2 Element

Brand: Argo-Hytos
Price Match
$462.00
Germany
8421.99.90
4.01 kg
0.0206 m³
Italy
8421.99.90
3.58 kg
0.0206 m³
France
8421.99.90
4.01 kg
0.0206 m³
United Kingdom
8421.99.90
3.65 kg
0.0198 m³
8421.99.90
Shipping Terms

Description

Genuine Argo-Hytos V3.2144-06 EXAPOR MAX 2 Element.

Specification

StyleEXAPOR MAX 2 Element

Description

Genuine Argo-Hytos V3.2144-06 EXAPOR MAX 2 Element.

Argo-Hytos Product

Genuine Argo-Hytos V3.2144-06

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
10µ @ β200
Efficiency 2 12µ @ β1000
Style Return Filter
Outer Diameter 202.0 mm
Inner Diameter 157.0 mm
Length 440.0 mm
Media Type Glass Fiber
Flow Direction IN-OUT
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure
Seal Nitrile
Temperature Range -30 - +100°C
